Apaguard V2.0
Note on 1st may 2020
- The HX712 does not bring anything compared to the HX711, the advertised gain of 256 is FAKE !! Confirmed by AVIA, but they continue to advertise this... ! Don't buy !
- The BME 280 does not last very long when used outside, even under a good shield. After some months, the hygrometer is showing 100 % all the time. The datasheet says it can be reconditioned, but hard to do for us...

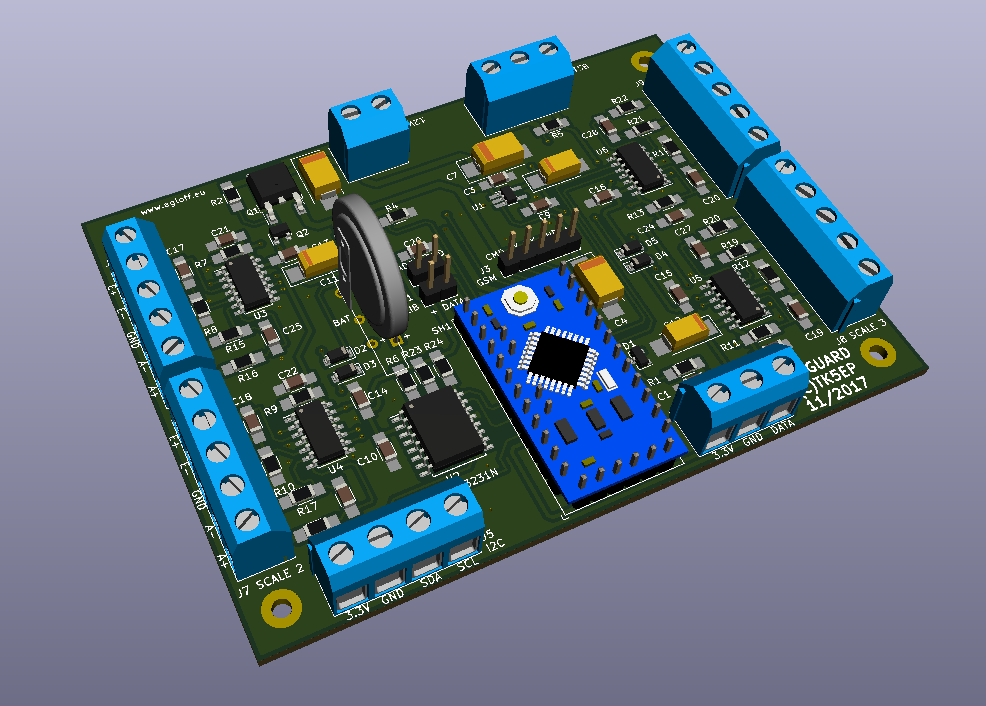

This newer prototype has 4 A/D converters built around the newer HX712. The DS3231 RTC and a LT1761-5 low noise voltage regulator are on the pcb.
For cost and ease of use, i kept the Arduino Pro Mini rather than a ATMEL 328P soldered on pcb.
The 4 analog inputs allow the measure of either 4 differents hives with one load cell, or 2 hives with 2 load cells each, or a single hive with 4 cells. The software has to be modified accordingly.

Arduino pinout
A0 |
Scale 1 |
Out |
A1 |
Scale 1 |
Sck |
A2 |
Scale 2 |
Out |
A3 |
Scale 2 |
Sck |
D13 |
Scale 3 |
Out |
D12 |
Scale 3 |
Sck |
D4 |
Scale 4 |
Out |
D5 |
Scale 4 |
Sck |
D2 |
DS3231 |
INT |
D3 |
Alarme/Key |
|
D9 |
SIM900 |
CMD |
D8 |
SIM900 |
TX |
D7 |
SIM900 |
RX |
D10 |
CALIB |
|
D11 |
18BS20 |
|
A4 |
I2C |
SDA |
A5 |
I2C |
SCL |
A6 |
Spare |
|
A7 |
Vbat. |
|
Here is the database diagram.
I've written a new Web user interface (UI) allowing to administrator to create new Apaguards, and users.
A user can manage his account, Apaguards, apiaries and hives as well as having access to all collected datas via tables and graphs.
The page can be reached here : http://www.egloff.eu/apaguard
